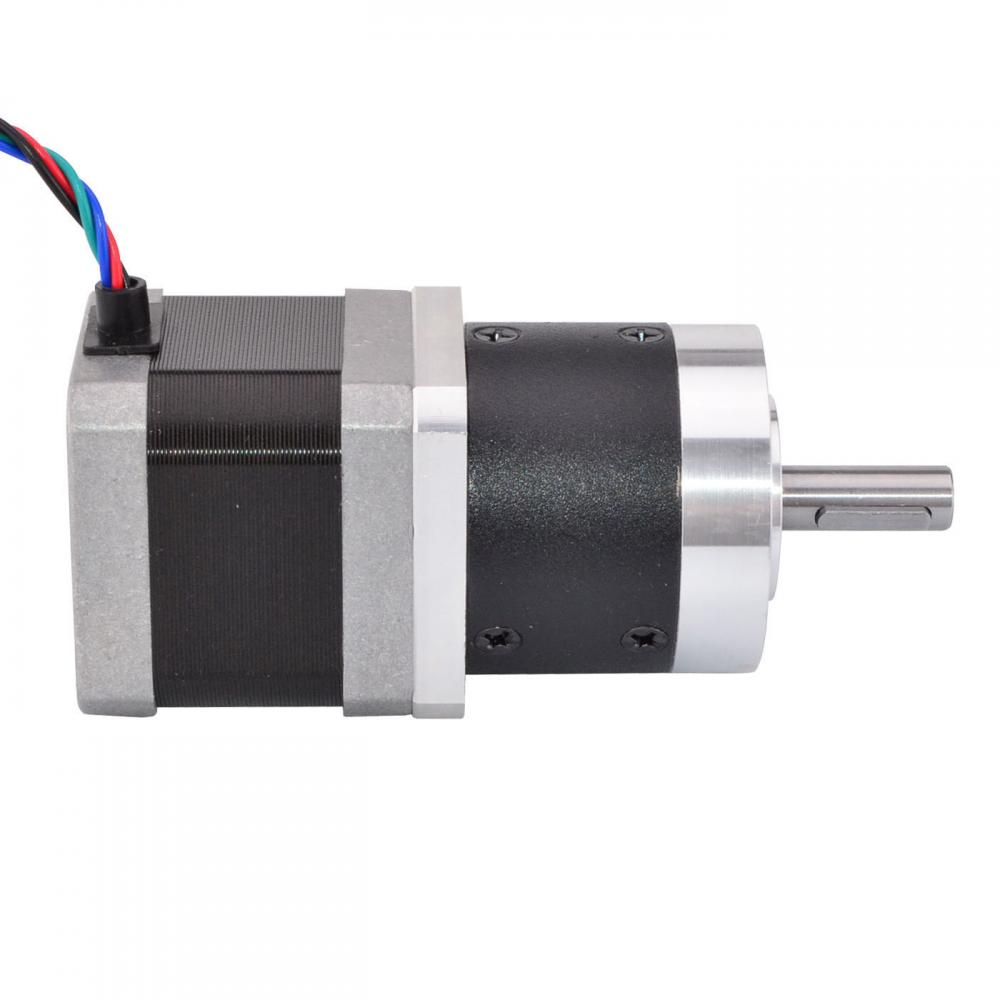

17HS15-1684S-HG10
17HS15-1684S-HG10
17HS15-1684S-HG10
High Efficiency,Low Cost,
Precision type planetary gearbox,
Gear ratio 10, Efficiency 95%,
Rated current 1.68A, 2 Phase Bipolar,
Nema 17 size, length 39mm(Motor) + 41mm(Gearbox)
USD 62.97
Availability: 120
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Motor Specification | |
| Inductance(mH) | 3.2 |
| Motor Nema Size | Nema 17 |
| Phase Resistance(ohm) | 1.6 |
| Rated Current(A) | 1.68 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque w/o Gearbox(Ncm) | 39 |
| Holding Torque w/o Gearbox(oz.in) | 55.23 |
| No. of Lead | 4 |
| Lead Length(mm) | 320 |
| Shaft Diameter(mm) | 8 |
| Gearbox Specification | |
| Backlash at No-load(Max.°) | 0.25 |
| Efficiency | 95% |
| Gear Ratio | 10:1 |
| Gearbox Type | Planetary |
| Max. Permissible Torque(Ncm) | 350 |
| Max. Permissible Torque(oz.in) | 495.6 |
| Moment Permissible Torque(Ncm) | 600 |
| Moment Permissible Torque(oz.in) | 849.7 |
| Shaft Maximum Radial Load(N) | 150 |
| Physical Specification | |
| Gearbox Length(mm) | 41 |
| Weight(g) | 680 |
| Motor Length(mm) | 39 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | Key-way |
| Shaft Length(mm) | 23.5 |
