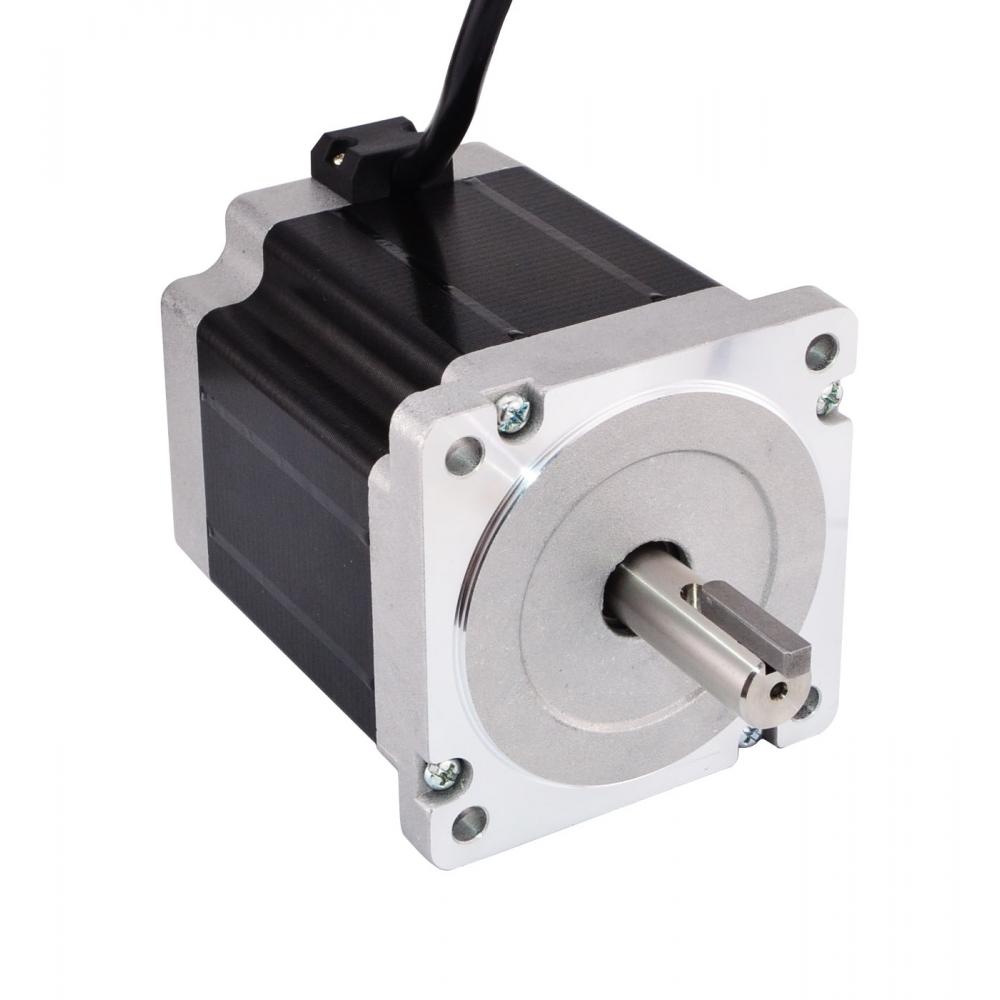

34HS38-4204D
34HS38-4204D
34HS38-4204D
High Torque, Keyway Dual Shaft,
Nema 34 - 86x86x98mm,
1.8 deg. (200 steps/rev),
Rated current 4.20A, 2 Phase Bipolar,
Holding torque 7.07Nm(1001oz-in)
USD 80.77
Availability: 33
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Ncm) | 707 |
| Holding Torque(oz.in) | 1001 |
| Inductance(mH) | 8 |
| Phase Resistance(ohm) | 0.8 |
| Rated Current(A) | 4.24 |
| Physical Specification | |
| Shaft Type | Key-Way |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Weight(g) | 3400 |
| Single Shaft/Dual Shaft | Dual Shaft |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 98 |
