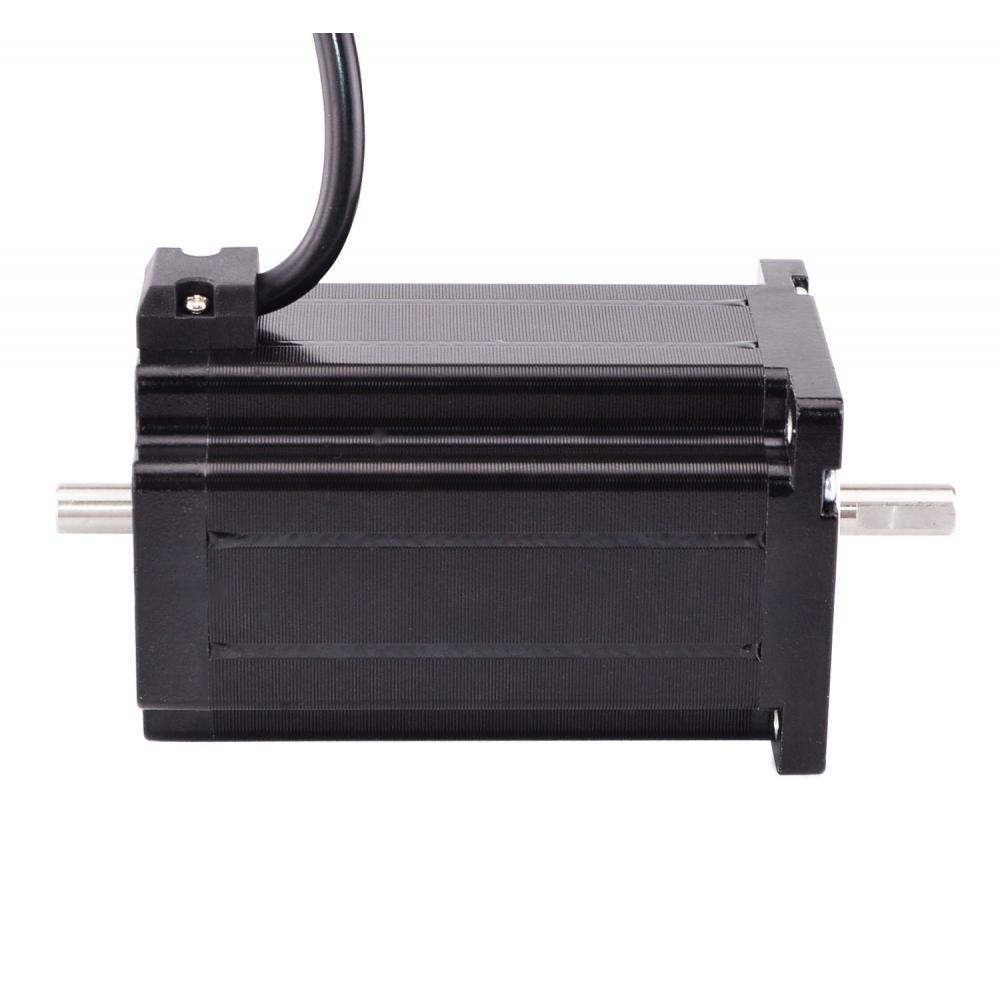

24HS39-4204D
24HS39-4204D
24HS39-4204D
High Torque, Dual Shaft,
Nema 24 - 60x60x100mm,
1.8 deg. (200 steps/rev),
Rated current 4.2A, 2 Phase Bipolar,
Holding torque 4.00Nm(566.45oz-in)
USD 46.90
Availability: 62
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Ncm) | 400 |
| Holding Torque(oz.in) | 566.45 |
| Inductance(mH) | 3 |
| Phase Resistance(ohm) | 0.7 |
| Rated Current(A) | 4.24 |
| Physical Specification | |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Weight(g) | 1700 |
| Single Shaft/Dual Shaft | Dual Shaft |
| Frame Size(mm) | 60x60 |
| Body Length(mm) | 100 |
