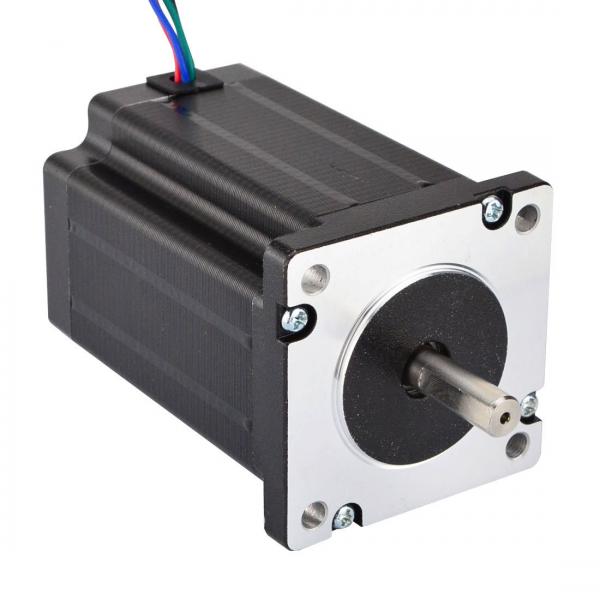

24HS34-3504D
24HS34-3504D
24HS34-3504D
Top Selling, Dual Shaft,
Nema 24 - 60x60x88mm,
1.8 deg. (200 steps/rev),
Rated current 3.5A, 2 Phase Bipolar,
Holding torque 3.10Nm(439oz-in)
USD 41.69
Availability: 140
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(oz.in) | 439 |
| Inductance(mH) | 5.6 |
| Phase Resistance(ohm) | 1.1 |
| Rated Current(A) | 3.5 |
| Physical Specification | |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 24 |
| No. of Lead | 4 |
| Lead Length(mm) | 600 |
| Weight(g) | 1340 |
| Single Shaft/Dual Shaft | Dual Shaft |
| Frame Size(mm) | 60x60 |
| Body Length(mm) | 88 |
