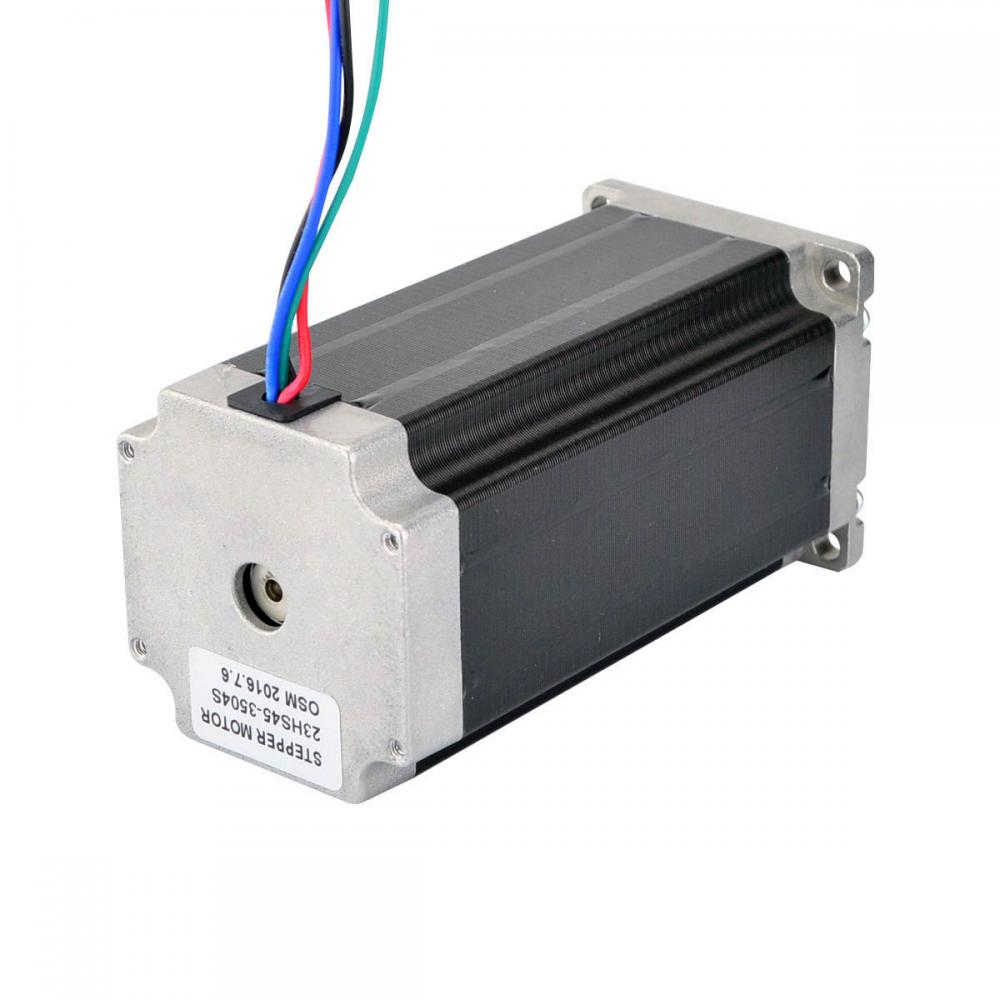

23HS45-3504S
23HS45-3504S
23HS45-3504S
D-cut Shaft, High Torque,
Nema 23 - 57x57x114mm,
1.8 deg. (200 steps/rev),
Rated current 3.5A, 2 Phase Bipolar,
Holding torque 3.00Nm(425oz-in)
USD 49.51
Availability: 99
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Ncm) | 300 |
| Holding Torque(oz.in) | 425 |
| Inductance(mH) | 5 |
| Phase Resistance(ohm) | 1.2 |
| Rated Current(A) | 3.5 |
| Physical Specification | |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 24 |
| No. of Lead | 4 |
| Lead Length(mm) | 400 |
| Weight(g) | 1600 |
| Single Shaft/Dual Shaft | Single Shaft |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 113 |
