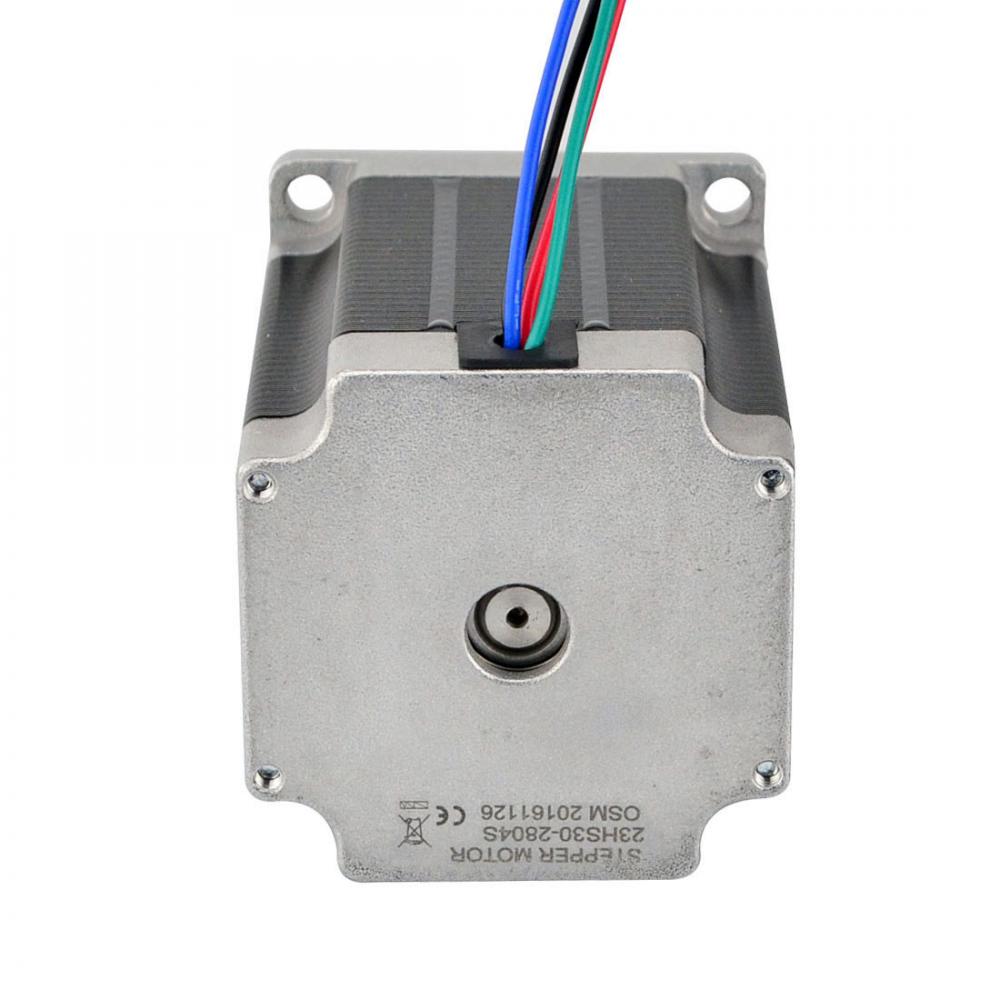

23HS30-2804S
23HS30-2804S
23HS30-2804S
Top Selling, D-cut Shaft,
Nema 23 - 57x57x76mm,
1.8 deg. (200 steps/rev),
Rated current 2.80A, 2 Phase Bipolar,
Holding torque 1.9Nm(269oz-in)
USD 35.44
Availability: 400
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Ncm) | 190 |
| Holding Torque(oz.in) | 269 |
| Inductance(mH) | 5.4 |
| Phase Resistance(ohm) | 1.13 |
| Rated Current(A) | 2.8 |
| Physical Specification | |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 6.35 |
| Shaft Length(mm) | 21 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Weight(g) | 1100 |
| Single Shaft/Dual Shaft | Single Shaft |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 76 |
