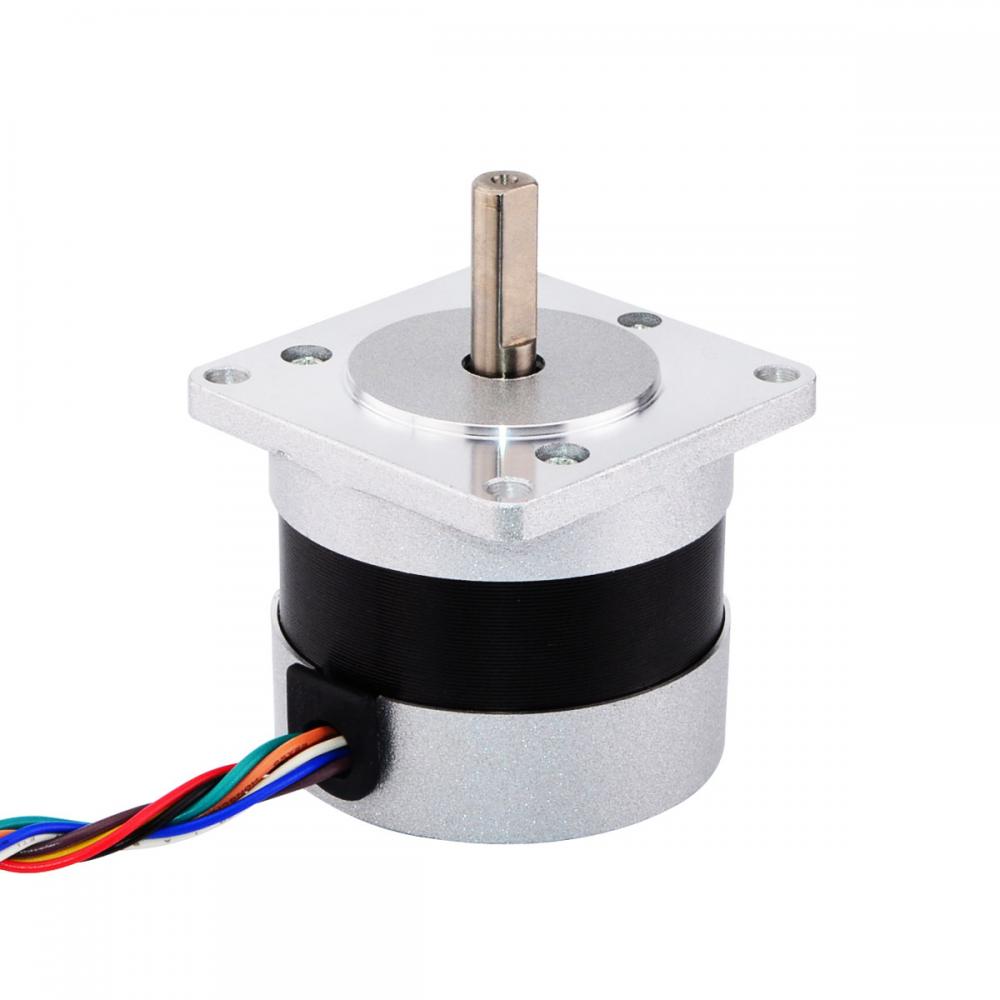

57BLR50-24-01
57BLR50-24-01
57BLR50-24-01
High Torque, High Efficiency,
3 Phase, 4 Poles,
Rated Voltage 24V,
Rated Power 84W,
Rated Speed 3500RPM,
Rated Torque 0.230Nm(32.58oz.in)
USD 39.88
Availability: 50
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification(BLDC) | |
| Insulation Class | Class B |
| Phase | 3 |
| Poles | 4 |
| Rated Current(A) | 5 |
| Rated Power(W) | 84 |
| Rated Speed(rpm) | 3500±10% |
| Rated Torque(Nm) | 0.23 |
| Rated Torque(oz.in) | 32.57 |
| Rated Voltage(V) | 24 |
| Sensor Type | Hall Sensor |
| Physical Specification | |
| No. of Lead | 8 |
| Weight(g) | 500 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 25 |
| Flange Size(mm) | Ф57 |
| Body Length(mm) | 49.1 |
