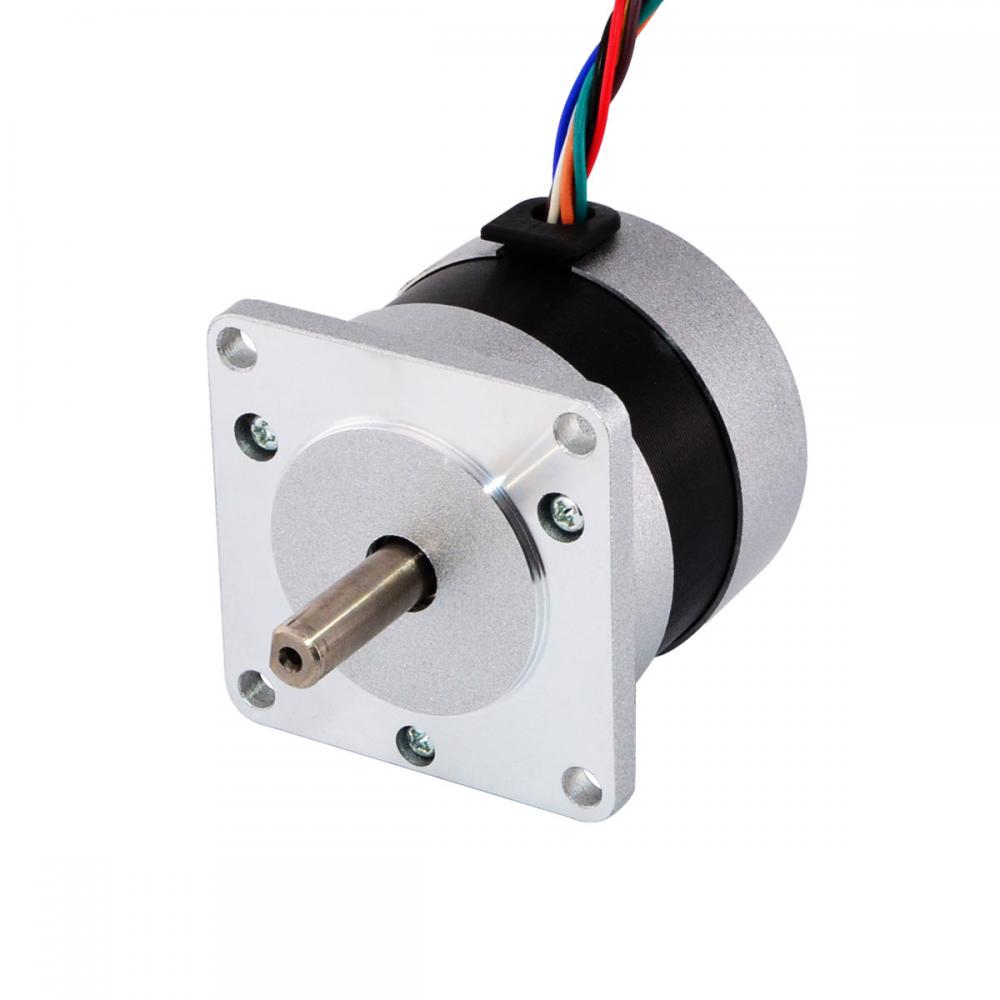

57BLR43-36-01
57BLR43-36-01
57BLR43-36-01
D-Cut Shaft, Low Losses,
3 Phase, 4 Poles,
Rated Voltage 36V,
Rated Power 25W,
Rated Speed 4400RPM,
Rated Torque 0.055Nm(7.79oz.in)
USD 37.78
Availability: 100
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification(BLDC) | |
| Insulation Class | Class B |
| Phase | 3 |
| Poles | 4 |
| Rated Current(A) | 1 |
| Rated Power(W) | 25 |
| Rated Speed(rpm) | 4400±10% |
| Rated Torque(Nm) | 0.055 |
| Rated Torque(oz.in) | 7.79 |
| Rated Voltage(V) | 36 |
| Sensor Type | Hall Sensor |
| Physical Specification | |
| No. of Lead | 8 |
| Weight(g) | 400 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 25 |
| Flange Size(mm) | Ф57 |
| Body Length(mm) | 43 |
