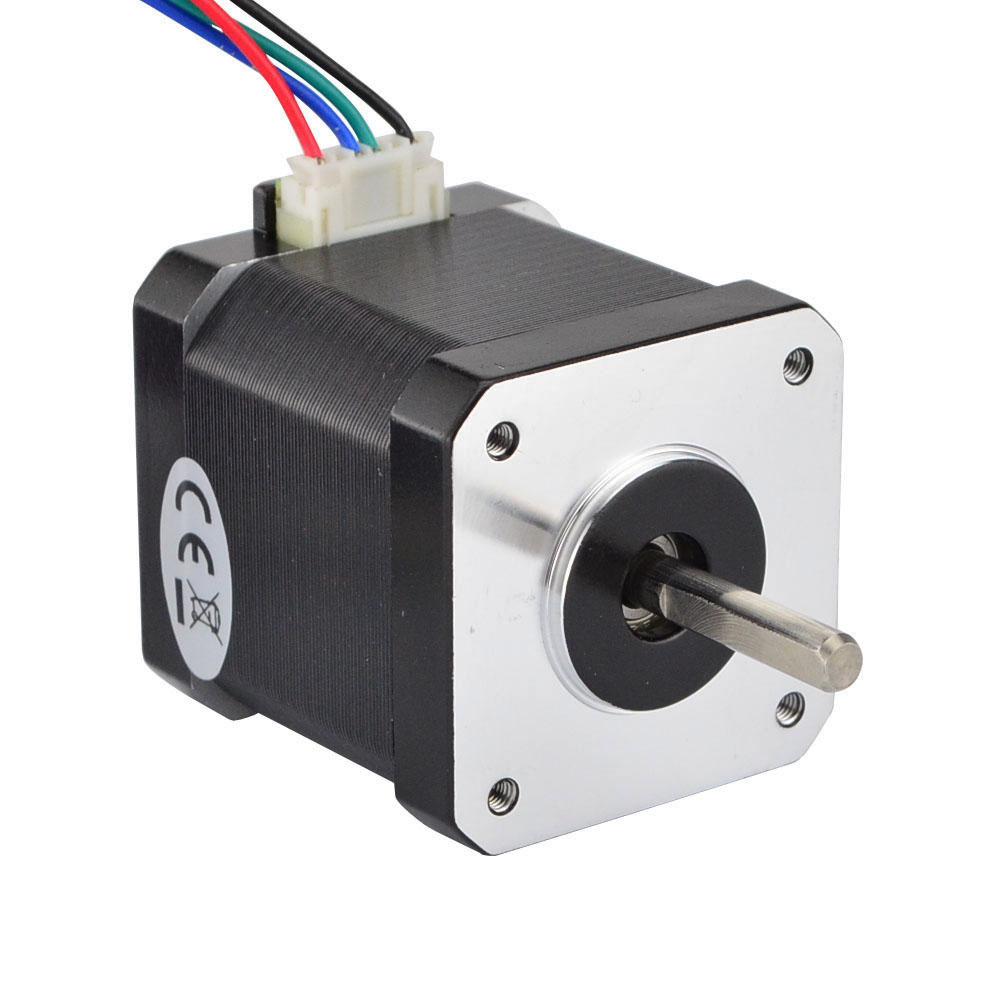

17HS19-1684S1
17HS19-1684S1
17HS19-1684S1
Low Losses, Low Cost,
Nema 17 - 42x42x48mm,
1.8 deg. (200 steps/rev),
Rated current 1.68A, 2 Phase Bipolar,
Holding torque 45Ncm(63.73oz-in)
USD 12.33
Availability: 240
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Ncm) | 45 |
| Holding Torque(oz.in) | 63.73 |
| Inductance(mH) | 2.5 |
| Phase Resistance(ohm) | 2 |
| Rated Current(A) | 1.68 |
| Physical Specification | |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Lead | 4 |
| Lead Length(mm) | 1000 |
| Weight(g) | 400 |
| Single Shaft/Dual Shaft | Single Shaft |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 48 |
