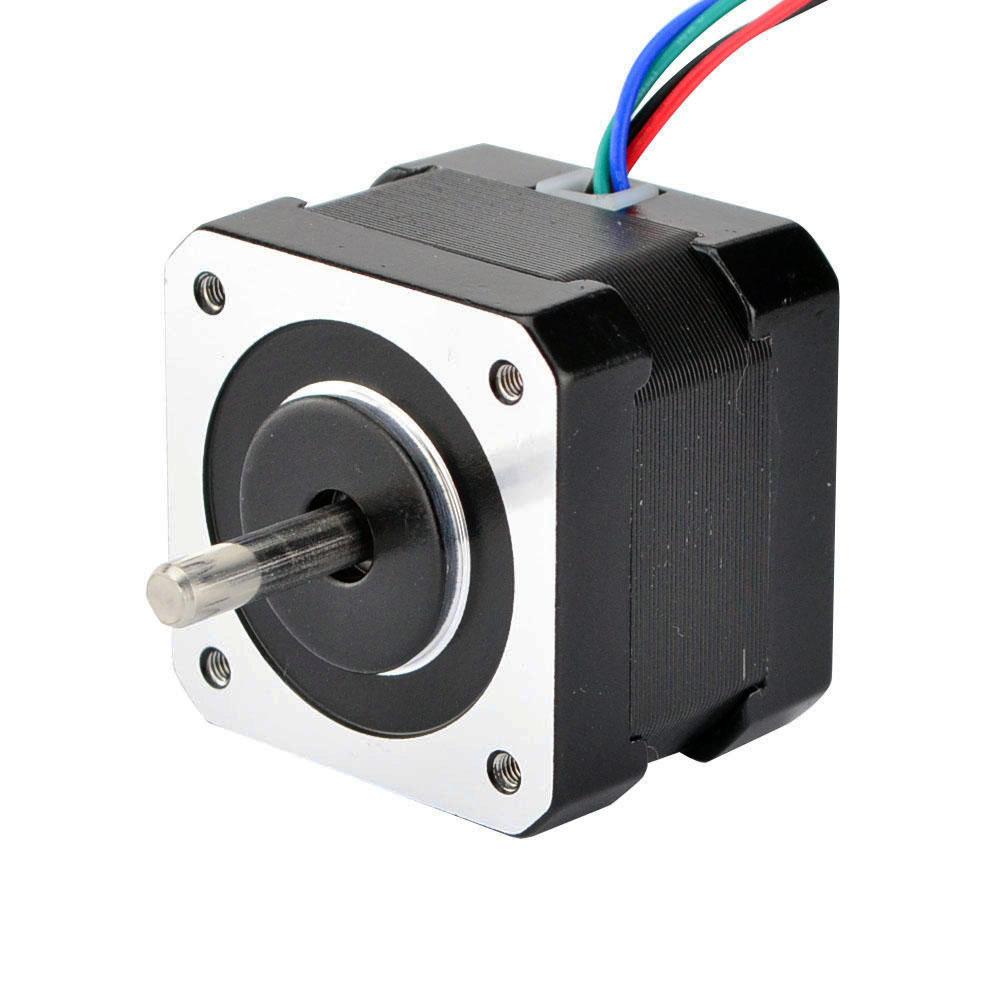

17HS13-0404D
17HS13-0404D
17HS13-0404D
Dual Shaft, High Torque,
Nema 17 - 42x42x34mm,
1.8 deg. (200 steps/rev),
Rated current 0.4A, 2 Phase Bipolar,
Holding torque 26Ncm(36.8oz-in)
USD 13.55
Availability: 127
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Ncm) | 26 |
| Holding Torque(oz.in) | 36.8 |
| Inductance(mH) | 37 |
| Phase Resistance(ohm) | 30 |
| Rated Current(A) | 0.4 |
| Physical Specification | |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Weight(g) | 280 |
| Single Shaft/Dual Shaft | Dual Shaft |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 34 |
