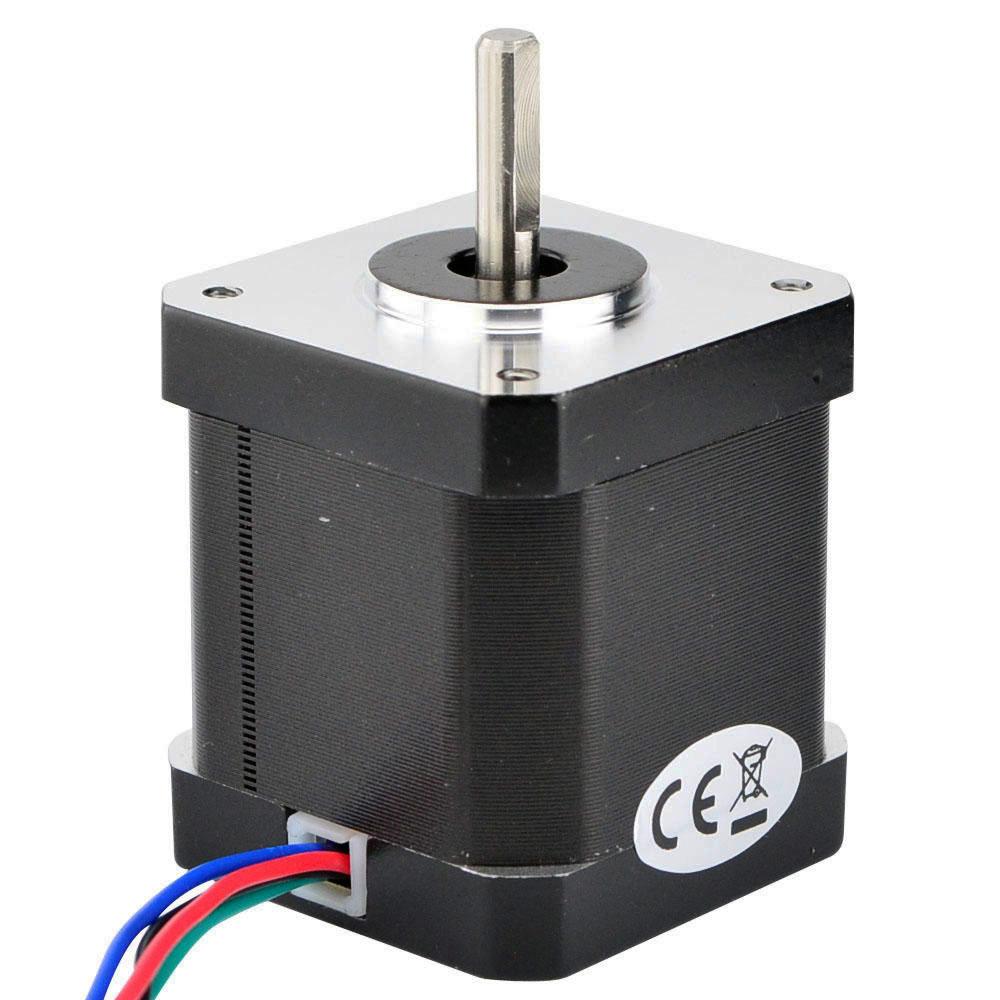

17HM19-1684S
17HM19-1684S
17HM19-1684S
Smooth movement, D-cut Shaft,
Nema 17 - 42x42x47mm,
0.9 deg. (400 steps/rev),
Rated current 1.68A, 2 Phase Bipolar,
Holding torque 44Ncm(62.3oz-in)
USD 22.29
Availability: 400
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 0.9 |
| Holding Torque(Ncm) | 44 |
| Holding Torque(oz.in) | 62.3 |
| Inductance(mH) | 4.1 |
| Phase Resistance(ohm) | 1.65 |
| Rated Current(A) | 1.68 |
| Physical Specification | |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Weight(g) | 350 |
| Single Shaft/Dual Shaft | Single Shaft |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 48 |
