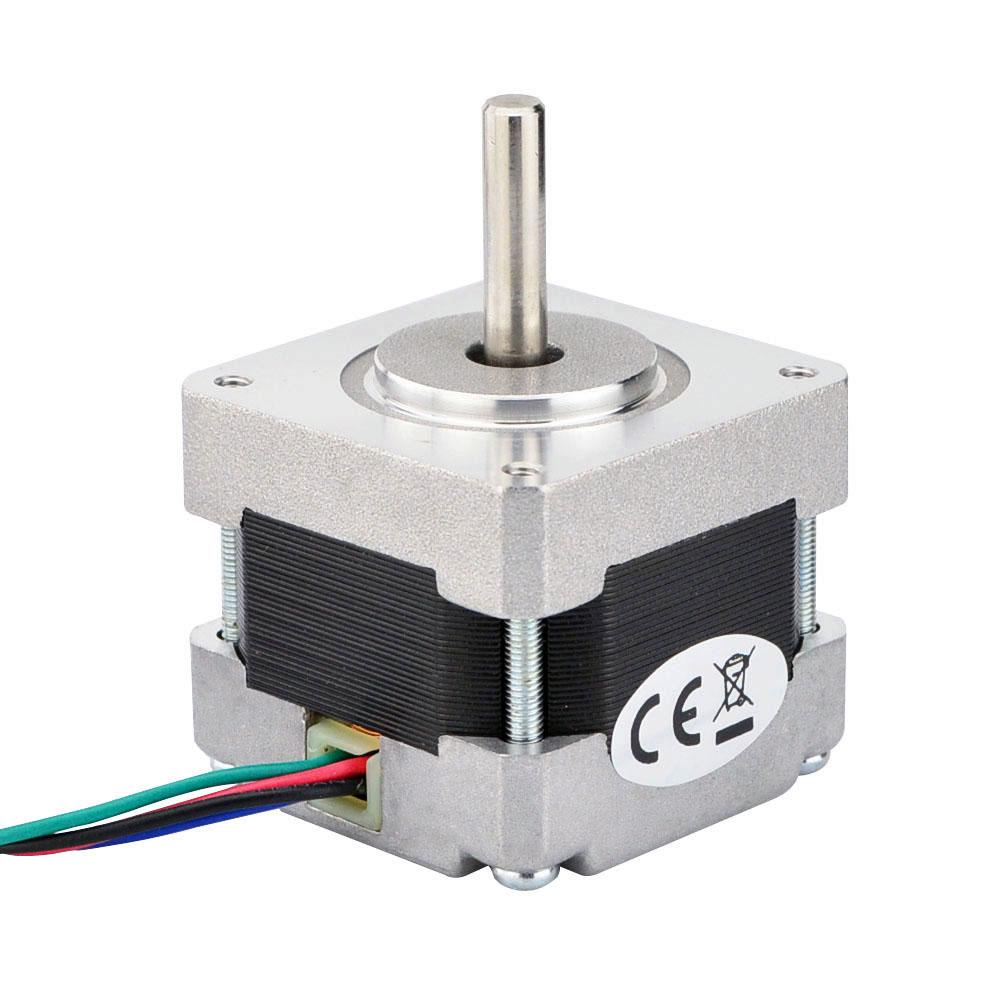

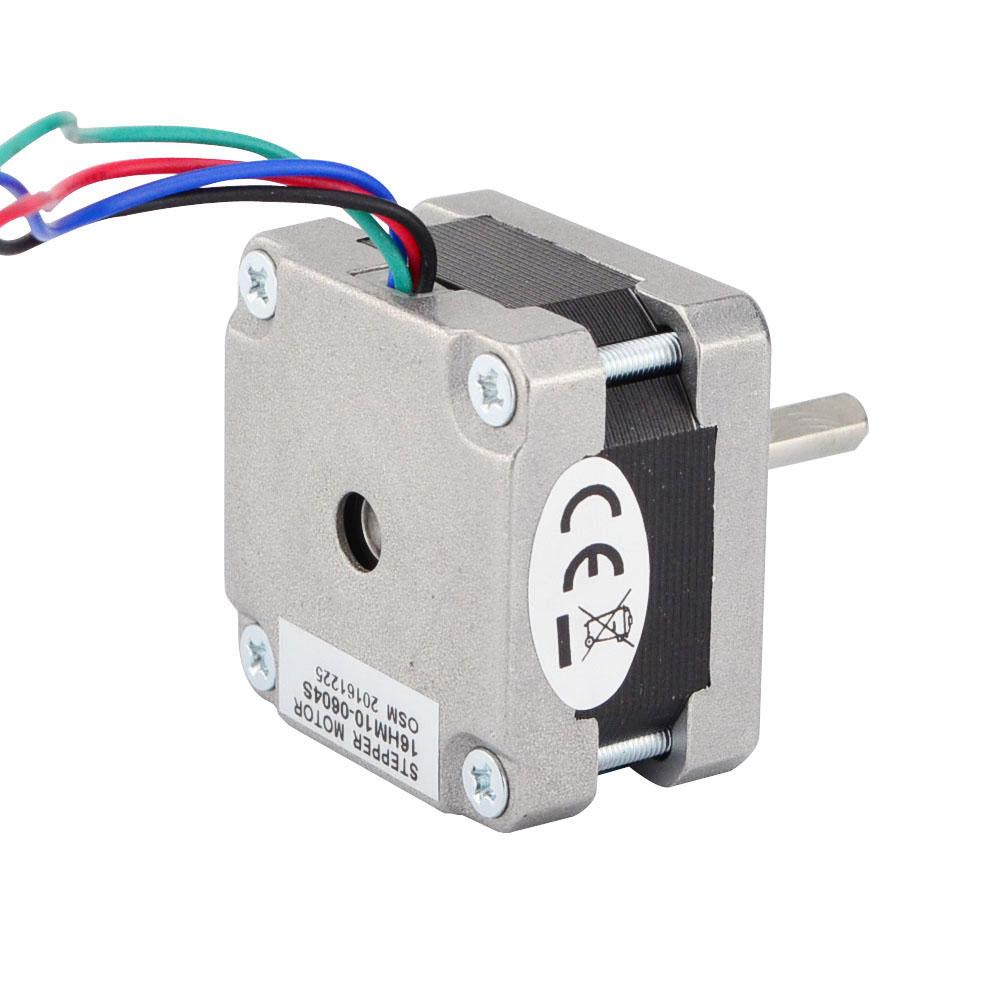

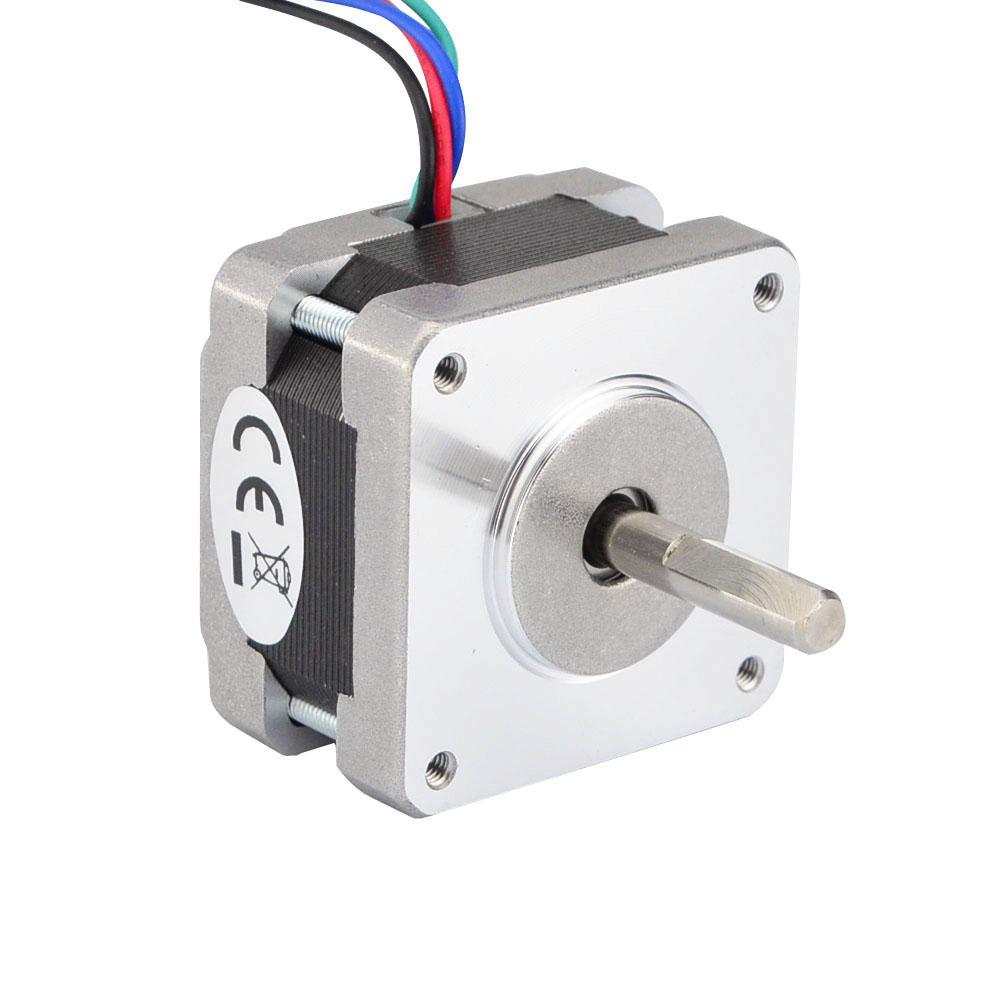

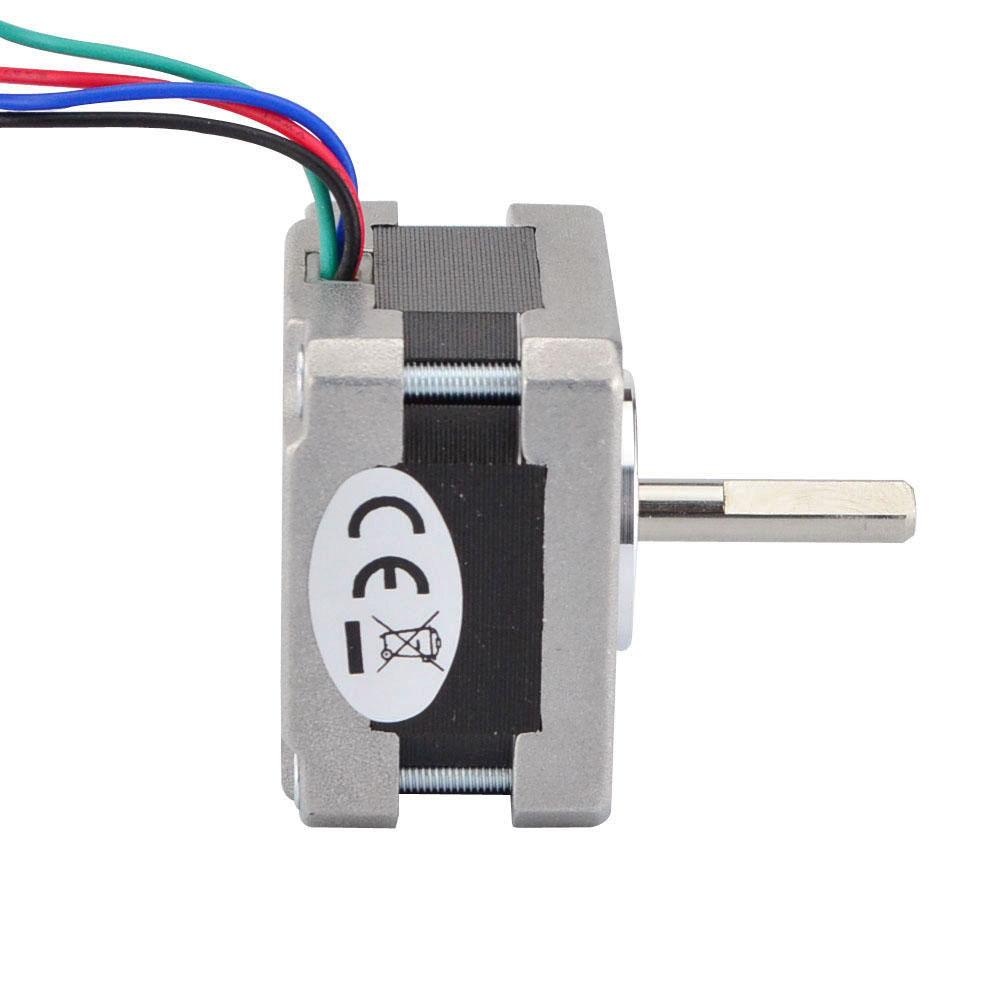

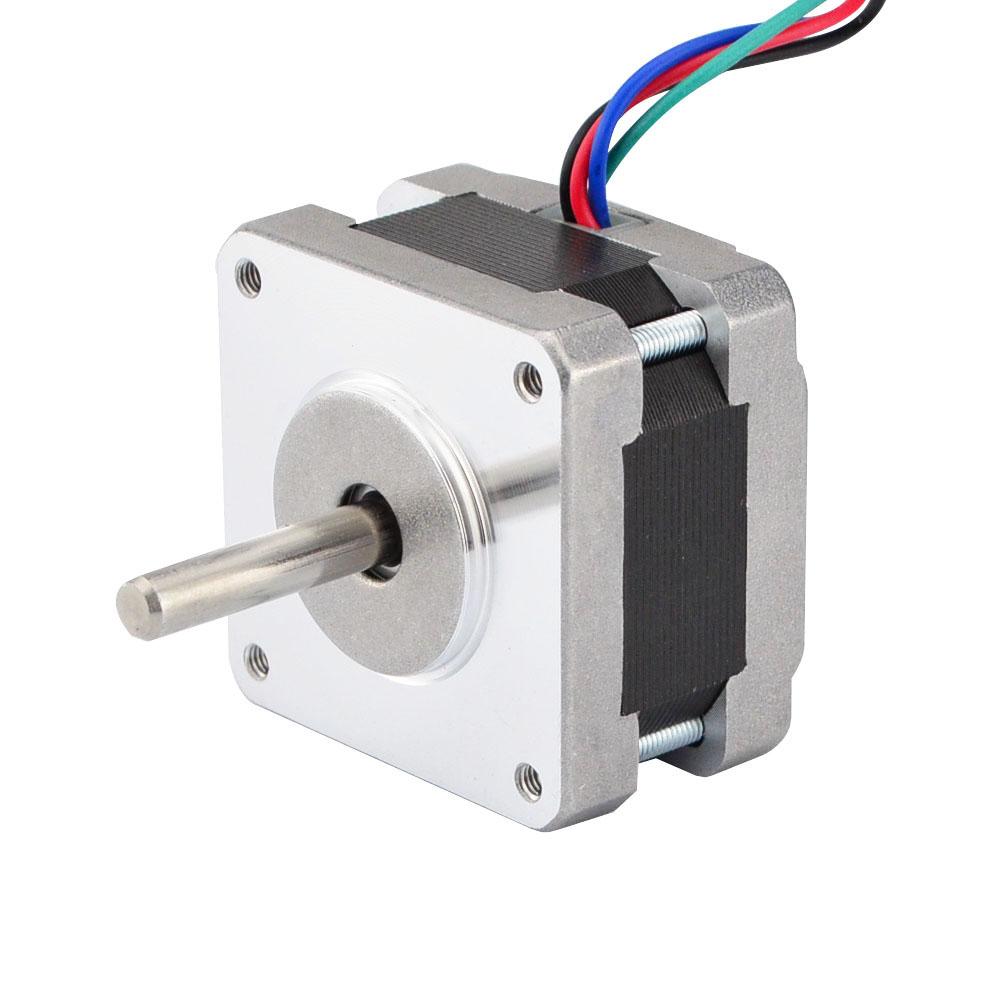

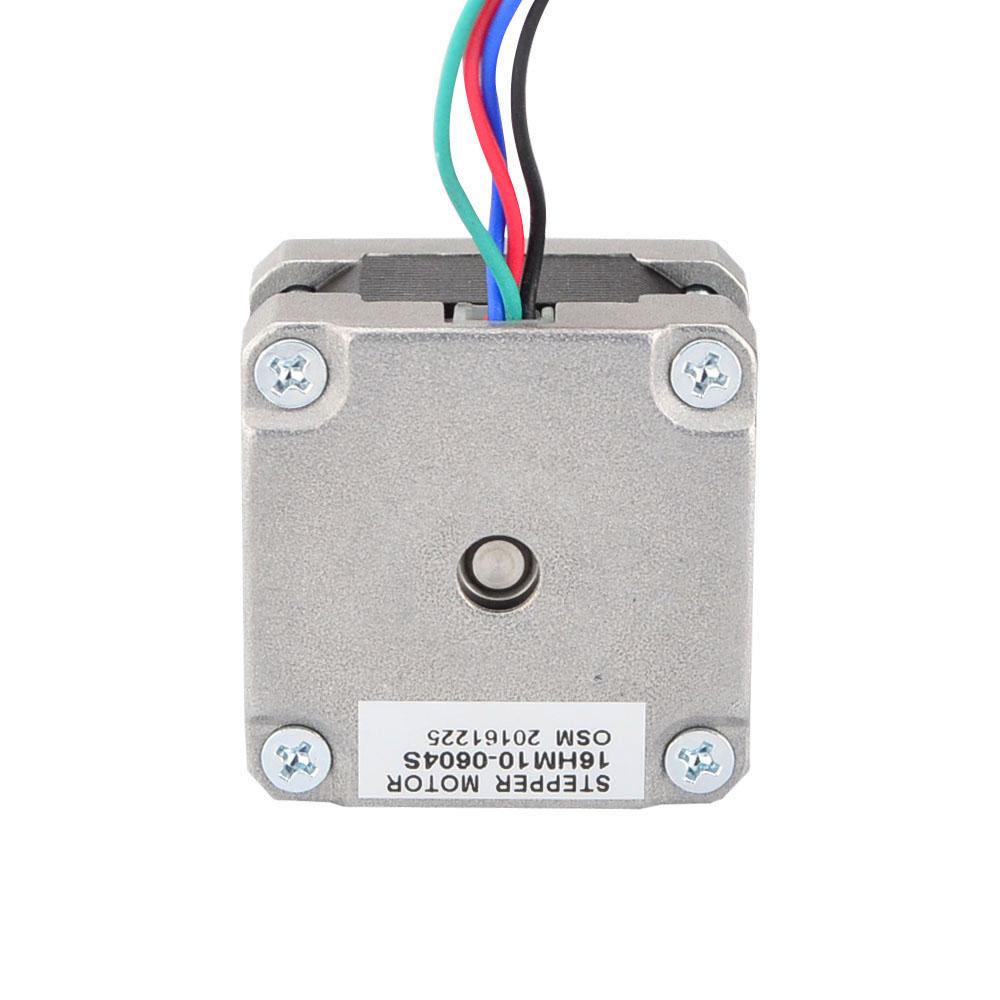

16HS13-0654S
16HS13-0654S
16HS13-0654S
High Speed, Long Life,
Nema 16 - 39x39x34mm,
1.8 deg. (200 steps/rev),
Rated current 0.65A, 2 Phase Bipolar,
Holding torque 18Ncm(25.5oz-in)
USD 15.00
Availability: 100
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Ncm) | 18 |
| Holding Torque(oz.in) | 25.5 |
| Inductance(mH) | 9.3 |
| Phase Resistance(ohm) | 7 |
| Rated Current(A) | 0.65 |
| Physical Specification | |
| Shaft Type | O |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 22 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Weight(g) | 180 |
| Single Shaft/Dual Shaft | Single Shaft |
| Frame Size(mm) | 39x39 |
| Body Length(mm) | 34 |
