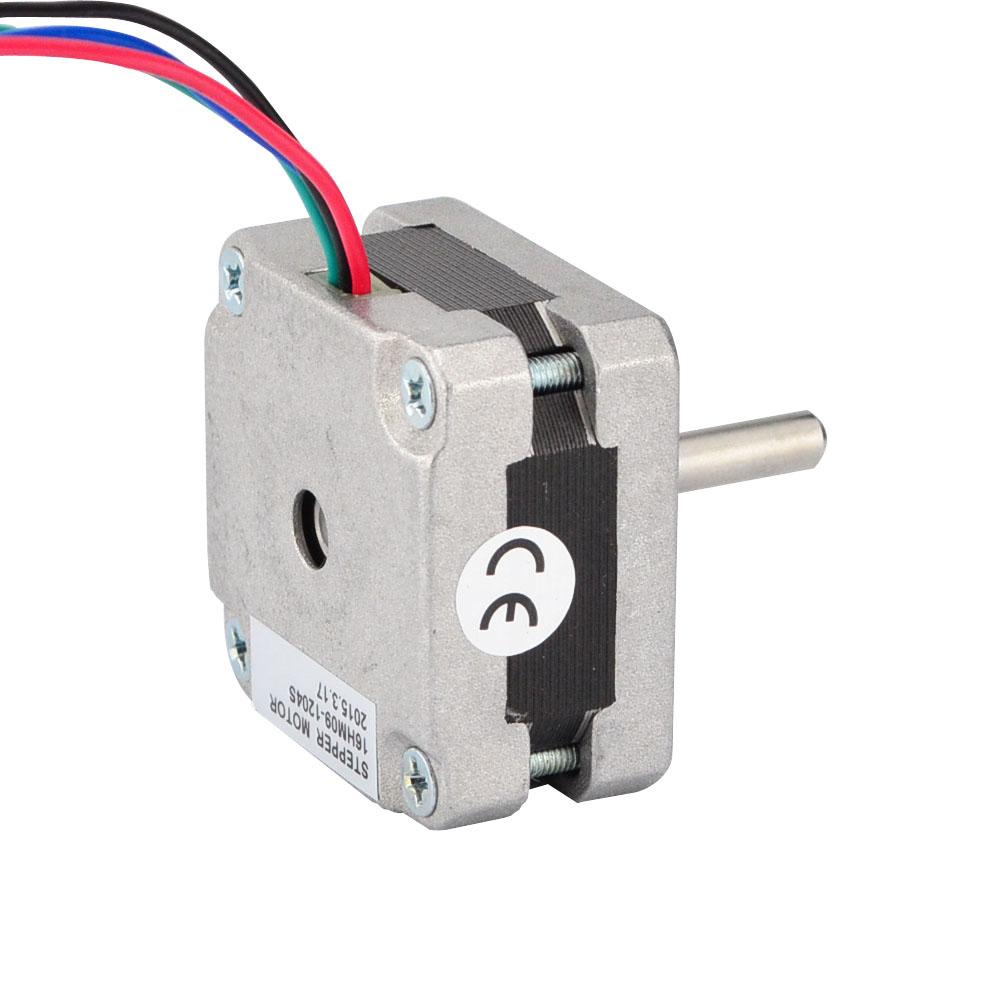

16HM09-1204S
16HM09-1204S
16HM09-1204S
Smooth movement, Low Losses,
Nema 16 - 39x39x22mm,
0.9 deg. (400 steps/rev),
Rated current 1.2A, 2 Phase Bipolar,
Holding torque 11Ncm(15.58oz-in)
USD 19.74
Availability: 100
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 0.9 |
| Holding Torque(Ncm) | 11 |
| Holding Torque(oz.in) | 15.58 |
| Inductance(mH) | 2.7 |
| Phase Resistance(ohm) | 3 |
| Rated Current(A) | 1.2 |
| Physical Specification | |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Weight(g) | 100 |
| Single Shaft/Dual Shaft | Single Shaft |
| Frame Size(mm) | 39x39 |
| Body Length(mm) | 22 |
