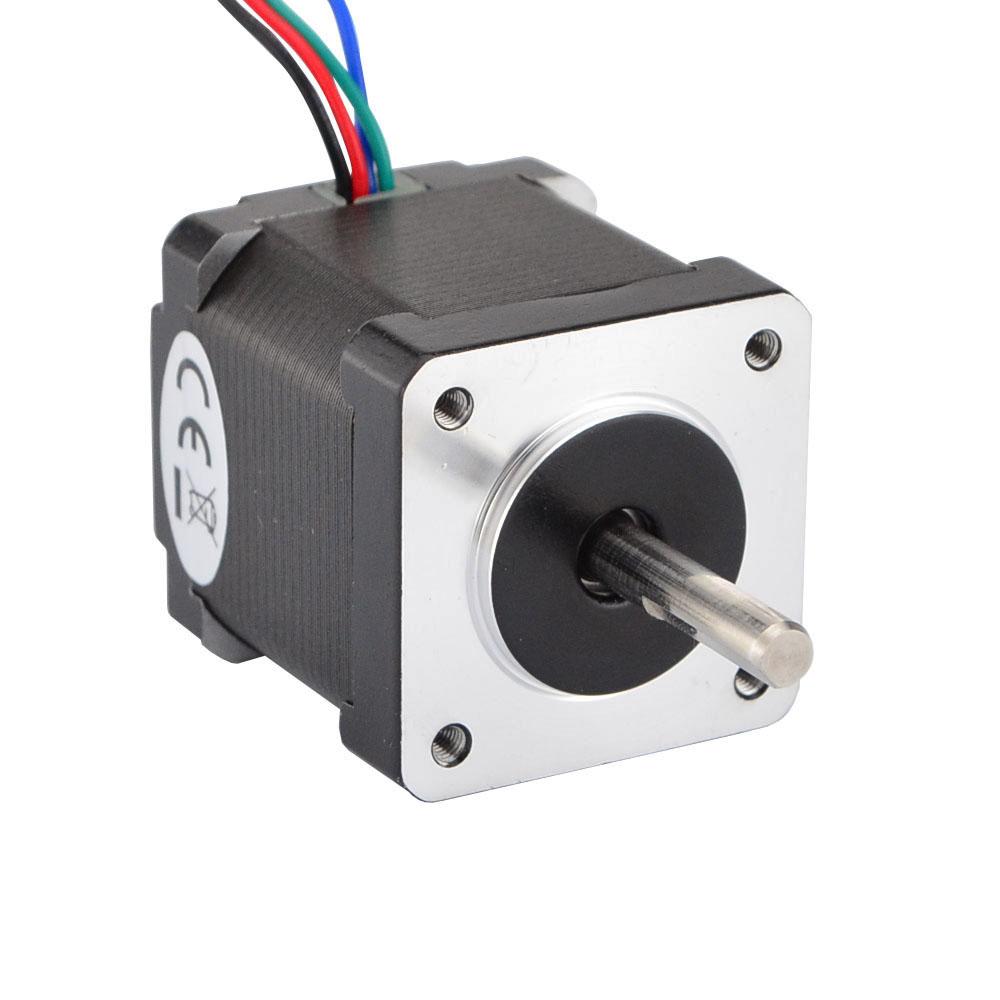

14HS17-0504S
14HS17-0504S
14HS17-0504S
Low Cost, D-cut Shaft,
Nema 14 - 35x35x42mm,
1.8 deg. (200 steps/rev),
Rated current 0.5A, 2 Phase Bipolar,
Holding torque 23Ncm(32.6oz-in)
USD 18.53
Availability: 160
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Ncm) | 23 |
| Holding Torque(oz.in) | 32.6 |
| Inductance(mH) | 26 |
| Phase Resistance(ohm) | 15 |
| Rated Current(A) | 0.5 |
| Physical Specification | |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Weight(g) | 200 |
| Single Shaft/Dual Shaft | Single Shaft |
| Frame Size(mm) | 35x35 |
| Body Length(mm) | 42 |
