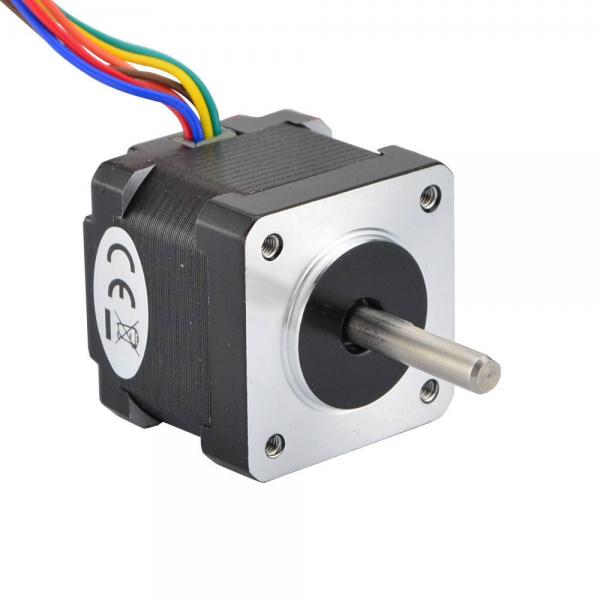

14HS13-0406S
14HS13-0406S
14HS13-0406S
Low Losses, Long Life,
Nema 14 - 35x35x34mm,
1.8 deg. (200 steps/rev),
Rated current 0.4A, 2 Phase Unipolar,
Holding torque 10Ncm(14.16oz-in)
USD 15.81
Availability: 80
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Unipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(oz.in) | 14.2 |
| Inductance(mH) | 17 |
| Phase Resistance(ohm) | 25 |
| Rated Current(A) | 0.4 |
| Physical Specification | |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Lead | 6 |
| Lead Length(mm) | 300 |
| Weight(g) | 170 |
| Single Shaft/Dual Shaft | Single Shaft |
| Frame Size(mm) | 35x35 |
| Body Length(mm) | 34 |
