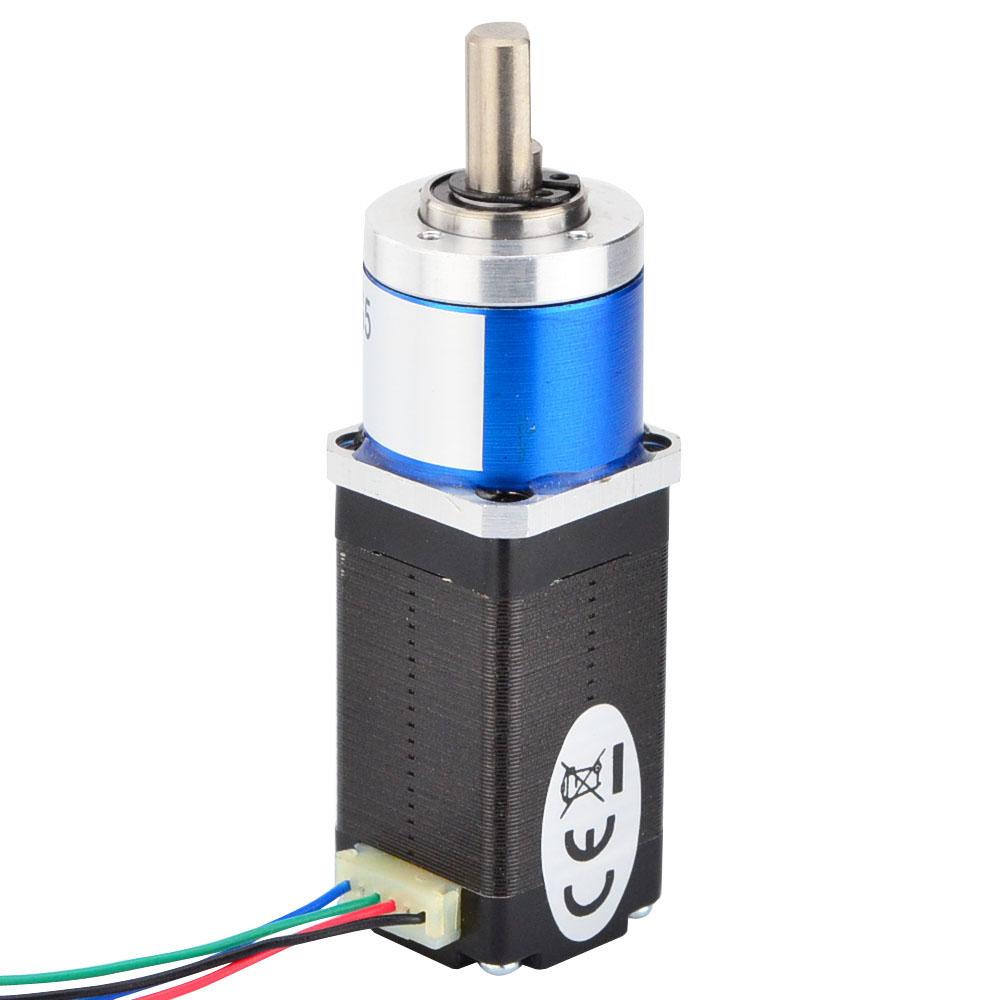

8HS15-0604S-PG5
8HS15-0604S-PG5
8HS15-0604S-PG5
D-cut Shaft,Low Cost,
Torque type planetary gearbox,
Gear ratio 4.75, Efficiency 90%,
Rated current 0.6A, 2 Phase Bipolar,
Nema 8 size, length 38mm(Motor) + 20.5mm(Gearbox)
USD 64.39
Availability: 200
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Motor Specification | |
| Inductance(mH) | 5.5 |
| Motor Nema Size | Nema 08 |
| Phase Resistance(ohm) | 10 |
| Rated Current(A) | 0.6 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque w/o Gearbox(Ncm) | 4 |
| Holding Torque w/o Gearbox(oz.in) | 5.7 |
| Gearbox Specification | |
| Backlash at No-load(Max.°) | 1 |
| Efficiency | 90% |
| Gear Ratio | 4.75:1 |
| Max. Permissible Torque(Ncm) | 50 |
| Max. Permissible Torque(oz.in) | 70.8 |
| Moment Permissible Torque(Ncm) | 100 |
| Moment Permissible Torque(oz.in) | 141.6 |
| Shaft Maximum Axial Load(N) | 5 |
| Shaft Maximum Radial Load(N) | 25 |
| Physical Specification | |
| Shaft Diameter(mm) | 6 |
| Shaft Length(mm) | 15 |
| Gearbox Length(mm) | 20.5 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Weight(g) | 120 |
| Motor Length(mm) | 38 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
