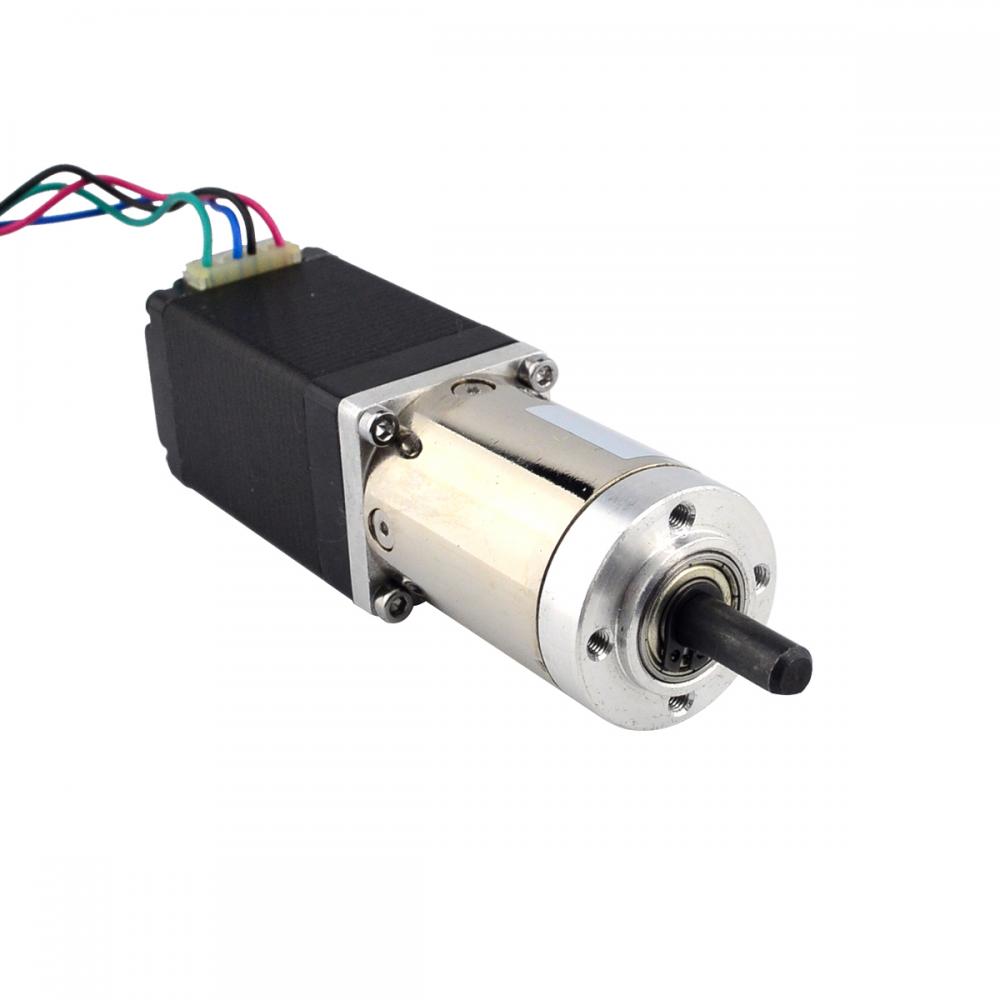

11HS20-0674D-PG51
11HS20-0674D-PG51
11HS20-0674D-PG51
D-cut Shaft,Dual Shaft,
Torque type planetary gearbox,
Gear ratio 51.89, Efficiency 73%,
Rated current 0.67A, 2 Phase Bipolar,
Nema 11 size, length 51mm(Motor) + 42.7mm(Gearbox)
USD 52.42
Availability: 20
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Motor Specification | |
| Inductance(mH) | 6.5 |
| Motor Nema Size | Nema 11 |
| Phase Resistance(ohm) | 12 |
| Rated Current(A) | 0.67 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque w/o Gearbox(Ncm) | 14 |
| Holding Torque w/o Gearbox(oz.in) | 19.8 |
| Gearbox Specification | |
| Backlash at No-load(Max.°) | 1 |
| Efficiency | 73% |
| Gear Ratio | 51.89:1 |
| Gearbox Type | Planetary |
| Max. Permissible Torque(Ncm) | 400 |
| Max. Permissible Torque(oz.in) | 566.56 |
| Moment Permissible Torque(Ncm) | 600 |
| Moment Permissible Torque(oz.in) | 849.84 |
| Shaft Maximum Axial Load(N) | 5 |
| Shaft Maximum Radial Load(N) | 25 |
| Physical Specification | |
| Shaft Diameter(mm) | 6 |
| Shaft Length(mm) | 18 |
| Gearbox Length(mm) | 42.7 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Weight(g) | 400 |
| Single Shaft/Dual Shaft | Dual Shaft |
| Shaft Type | D-Cut |
