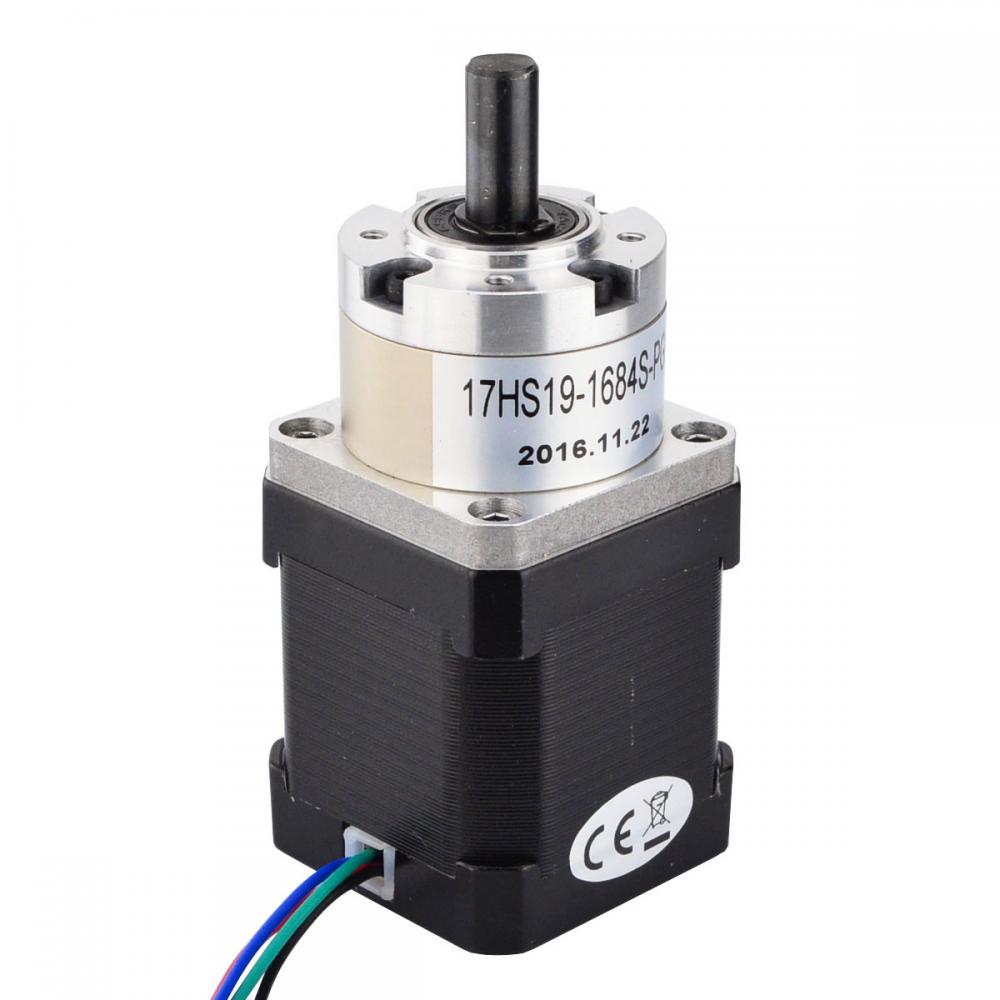

17HS19-1684S-PG5
17HS19-1684S-PG5
17HS19-1684S-PG5
D-cut Shaft,Top Selling,
Torque type planetary gearbox,
Gear ratio 5.18, Efficiency 90%,
Rated current 1.68A, 2 Phase Bipolar,
Nema 17 size, length 48mm(Motor) + 27.3mm(Gearbox)
USD 40.99
Availability: 120
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Motor Specification | |
| Inductance(mH) | 3.2 |
| Motor Nema Size | Nema 17 |
| Phase Resistance(ohm) | 1.8 |
| Rated Current(A) | 1.68 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque w/o Gearbox(Ncm) | 52 |
| Holding Torque w/o Gearbox(oz.in) | 73.6 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Shaft Diameter(mm) | 8 |
| Gearbox Specification | |
| Backlash at No-load(Max.°) | 1 |
| Efficiency | 90% |
| Gear Ratio | 5.18:1 |
| Gearbox Type | Planetary |
| Max. Permissible Torque(Ncm) | 200 |
| Max. Permissible Torque(oz.in) | 283.2 |
| Moment Permissible Torque(Ncm) | 400 |
| Moment Permissible Torque(oz.in) | 566.4 |
| Shaft Maximum Radial Load(N) | 100 |
| Physical Specification | |
| Gearbox Length(mm) | 27.3 |
| Weight(g) | 600 |
| Motor Length(mm) | 48 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Shaft Length(mm) | 20 |
